An LED display black screen is not one fault. The cause may sit in the content source, processor, network path, power distribution, receiving hardware, configuration, or an individual cabinet. When operators improvise under pressure, they can erase useful evidence, extend downtime, or create a safety risk. A better response begins before the screen fails: define how to protect the live operation, classify the symptom, collect evidence, use only approved recovery actions, and escalate to the right owner.
This guide helps control-room teams, venue operators, integrators, and buyers create an LED display black-screen recovery plan that can be tested during handover. It is an operational framework, not a substitute for the manufacturer’s instructions or qualified electrical and technical work.
Protect the operation before diagnosing the wall
The first decision is operational, not technical. Ask what the audience, operator, or business process needs during the outage. A control room may need critical data moved to desktop monitors. A retail display may need a neutral fallback image or a controlled shutdown. An event venue may need the producer to switch to a backup output while the display team investigates.
- Protect people: stop any action that introduces an electrical, access, lifting, or crowd-control risk.
- Protect the message: use the approved fallback channel, backup display, or non-misleading holding content.
- Protect evidence: record the time, visible pattern, active source, recent changes, alarms, and environmental conditions before rebooting equipment.
- Protect configuration: do not overwrite files, firmware, mappings, or calibration data during first response.
- Protect accountability: open the incident record and notify the named technical owner.
The operator runbook should clearly separate permitted front-line actions from work reserved for qualified technicians. Opening cabinets, testing live circuits, changing protection devices, or defeating safety interlocks should never be presented as routine operator troubleshooting.
Classify the black-screen pattern first
The visible pattern narrows the investigation. “The wall is black” is less useful than “all cabinets lost content after a source change” or “one rectangular cabinet group is dark while the rest of the canvas remains stable.” Record a photo or short video when site rules allow it, but do not capture confidential content.
| Visible symptom | First boundary to confirm | Evidence to capture |
|---|---|---|
| Entire wall black | Source, processor output, master control state, and common power path | Source preview, processor status, time of failure, active preset, and monitoring alerts |
| One input or layout region black | Source availability, routing, canvas layer, scaling, and input format | Affected input, known-good source test, routing state, and current layout |
| One cabinet or rectangular group black | Local power or signal distribution boundary | Exact cabinet coordinates, indicator states, upstream/downstream pattern, and temperature |
| Row or column outage | Daisy-chain, distribution, mapping, or shared supply path | First failed position, neighboring cabinet behavior, connection map, and recent service work |
| Intermittent blackouts | Loose connection, thermal state, unstable source, network event, or protection trip | Frequency, duration, content state, temperature, movement, alarms, and event logs |
| Wall powered but image extremely dark | Brightness schedule, sensor input, preset, processing, or content level | Brightness command, sensor state, active scene, content waveform, and room conditions |
This table supports LED screen fault diagnosis, but it is a routing aid rather than a final answer. Different architectures can create similar symptoms. The approved system drawing and cabinet map should identify which components and connections are shared so technicians can test the smallest reasonable boundary.
What evidence should operators capture?
Good evidence shortens the conversation between operators, integrators, manufacturers, IT teams, and electricians. The incident form should be brief enough to complete under pressure but specific enough to compare repeated events.
- Date, time, duration, site, wall name, and operator.
- Full-wall photo plus a close view of the affected region, when permitted.
- Active content source, resolution, frame rate, connection path, and selected preset.
- Whether audio, control, monitoring, or other systems changed at the same time.
- Cabinet coordinates, processor port, distribution branch, circuit reference, and rack location.
- Visible indicators and alarms recorded exactly, without interpreting them prematurely.
- Room and rear-cavity temperature, ventilation state, weather exposure where relevant, and recent cleaning or service.
- Every action taken, by whom, at what time, and the result.
Logs and screenshots need context. A photo of an alarm without the equipment model, time, configuration, and operating state may be impossible to interpret later. Keep LED display monitoring records with the final drawings, configuration backups, cabinet map, and support contacts.
Use an approved recovery sequence
A recovery sequence should move from reversible operational checks toward technical intervention. The exact steps must follow the approved design and manufacturer guidance.
- Confirm the incident. Check whether the problem is visible on the physical wall, a confidence monitor, a remote preview, or all three.
- Stabilize the operation. Switch to the agreed fallback source or communication method without hiding the incident from the technical owner.
- Capture the initial state. Record the symptom, configuration, alarms, environmental conditions, and recent changes.
- Check the upstream path. Verify source availability, routing, processor input, output enable state, and the selected known-good preset using approved controls.
- Check monitoring information. Use cabinet, processor, network, and power monitoring to identify the affected boundary without opening equipment.

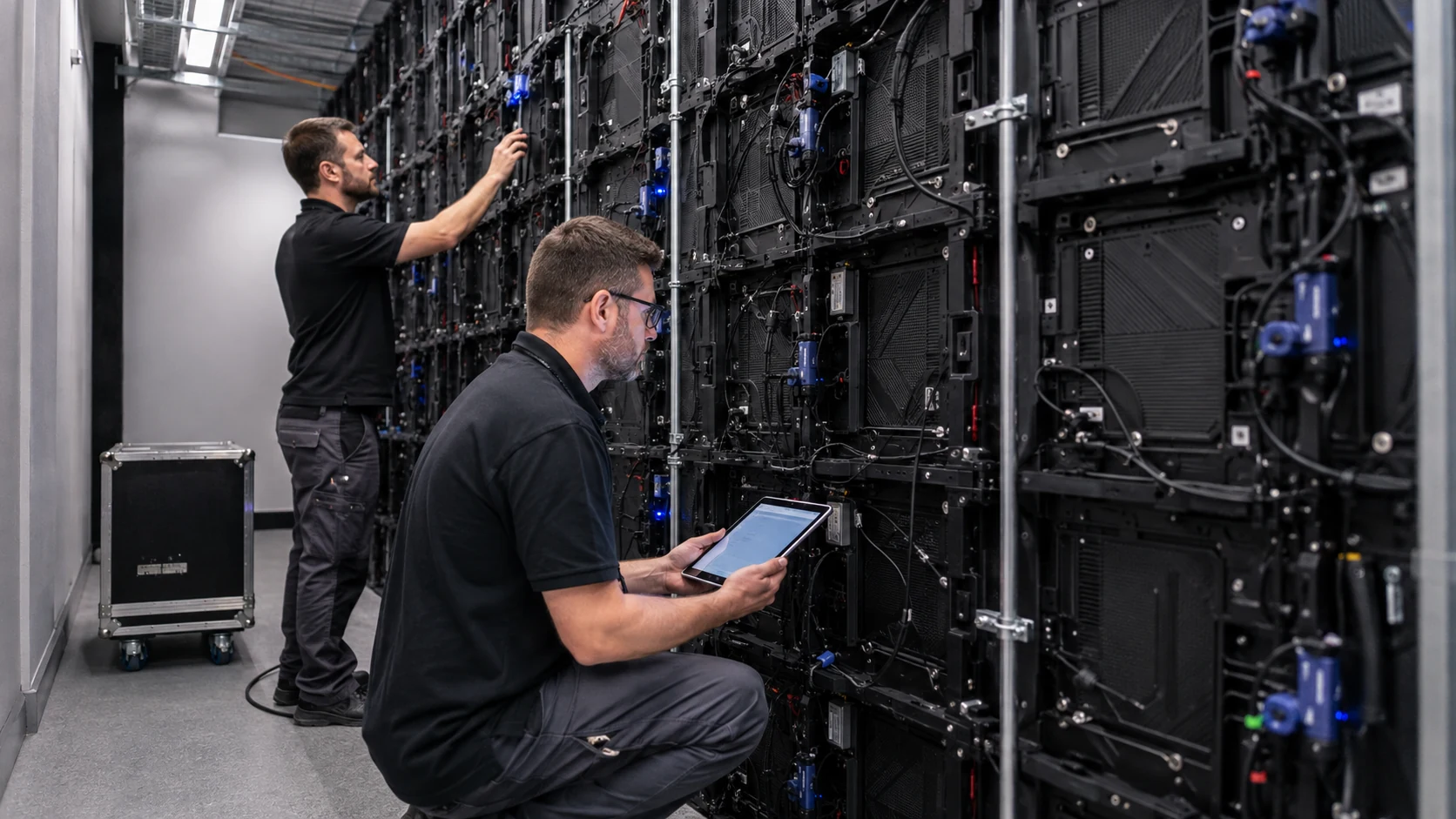

- Escalate physical checks. A qualified technician follows the site’s isolation, access, and manufacturer procedures for cabinets, power, and signal hardware.
- Restore from a controlled state. Use a verified configuration and record any replacement part, cable change, setting change, or reboot.
- Validate the complete canvas. Test normal content, black, white, primary colors, gradients, motion, and the required inputs before returning the wall to service.
Repeated reboots are not a recovery strategy. They may temporarily clear a symptom while removing logs or concealing an intermittent fault. If a reboot is an approved step, define who can authorize it, what must be saved first, and what verification follows.
Design backup paths around the required service level
Redundancy should protect a defined failure, not simply add duplicate hardware. Decide whether the project must survive a source failure, processor failure, network-path failure, power-branch failure, cabinet failure, or a maintenance event. The existing guide to signal and power redundancy for critical LED walls explains how those paths should be separated and verified.
A backup that shares the same power, switch, cable route, configuration error, or operator mistake may not protect the intended risk. Define the switch method, authority, expected visual interruption, monitoring, and return-to-normal process. Buyers should also review the LED video processor selection checklist when processor behavior and source failover are part of the requirement.
Plan safe access, spares, and configuration control
Recovery time depends on access and information as much as spare quantity. A replacement module stored on site has little value if technicians cannot reach the failed position, identify the correct batch, load the right calibration data, or isolate the correct circuit safely.
- Maintain an accurate cabinet map with processor ports, network paths, power branches, and physical coordinates.
- Store approved configuration and calibration backups with version, date, responsible person, and compatible hardware.
- Identify critical spares by exact model, revision, batch, firmware dependency, and storage condition.
- Provide safe front or rear access, working space, lighting, lifting method, and isolation points.
- Define who may replace modules, receiving cards, power supplies, fans, cables, or processors.
- Record removed parts, replacement serials, settings, test results, and replenishment needs.
The KSSdisplay support page can be included in the site’s contact directory, but the project handover should also name the integrator, local electrician, IT owner, facilities contact, and after-hours escalation route.
Turn the plan into an acceptance drill
A document that has never been rehearsed may fail during a real outage. Include a controlled recovery drill in commissioning and operator training. Simulate only approved, safe scenarios and avoid introducing faults that could damage equipment or interrupt an active business process.
The witness team should confirm that operators can identify the wall and affected region, activate fallback communication, find drawings and contacts, preserve evidence, follow escalation rules, and validate the restored image. Time the workflow for planning, but do not turn speed into the only acceptance measure. A fast unsafe action is not a successful recovery.
Close the drill with an exception list. Update labels, drawings, passwords under the site’s credential process, spare locations, training, monitoring thresholds, and contact details. Then store the revised runbook where it remains available during a network or display outage.
Compare recovery scope, not only cabinet price
Two LED display quotations can use similar cabinets while offering very different operational readiness. Compare monitoring capability, redundant paths, cabinet mapping, configuration backups, spare strategy, service access, documentation, training, response coverage, remote-support boundaries, commissioning tests, and recovery drills.
Assign every item to the manufacturer, integrator, IT team, electrician, facilities team, operator, or local service partner. State exclusions and response assumptions. The lower equipment price may not be the lower operating risk if recovery information and responsibility are missing.
Build the LED display black-screen recovery plan into the RFQ
KSSdisplay’s commercial LED display solutions can provide a starting point for application discussions, but the recovery requirement should be written around the site’s actual service level. Ask bidders to return the proposed architecture, failure boundaries, monitoring points, backup methods, drawings, spare schedule, access assumptions, responsibility matrix, training plan, and acceptance drill.
For a project-specific proposal, contact KSSdisplay with the application, screen dimensions, operating hours, critical content, acceptable interruption, source and processor architecture, network and power boundaries, access method, local support model, destination, and schedule. Those inputs turn an LED display black-screen recovery plan into a comparable procurement requirement rather than an emergency note written after the first outage.
Frequently asked questions
What should an operator do first when an LED display goes black?
Protect people and the live operation, activate the approved fallback, record the visible pattern and system state, and notify the named technical owner. Do not open cabinets or perform electrical work unless the operator is qualified and the procedure specifically authorizes it.
Does a black cabinet always mean that cabinet has failed?
No. A dark cabinet or group can reflect an upstream signal, mapping, distribution, power, configuration, or local hardware issue. The cabinet map, monitoring data, neighboring behavior, and approved test sequence help a technician locate the true boundary.
Should operators reboot the LED wall immediately?
Not automatically. Capture evidence first and follow the approved runbook. A reboot may remove useful logs, conceal an intermittent issue, or affect other systems. Define who can authorize it and what validation is required afterward.
How often should the recovery plan be tested?
Test it at commissioning and after material changes to hardware, software, routing, staffing, room access, or support responsibility. The operating team should also set a review interval based on the display’s business criticality and site procedures.
What belongs in an LED display black-screen recovery plan?
Include operational fallback, approved first-response actions, evidence fields, cabinet and system maps, escalation contacts, safe-access rules, configuration backups, critical spares, validation tests, incident reporting, and a controlled drill schedule.
