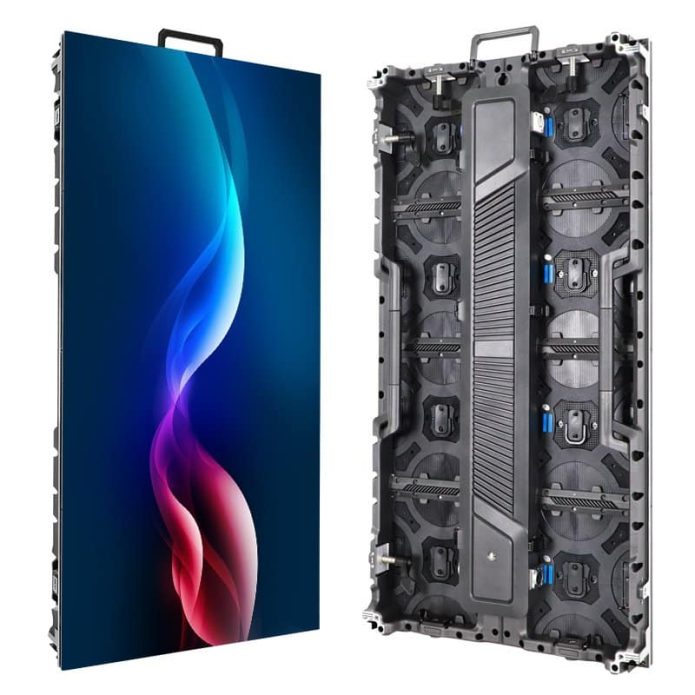

KSS1000c6 500×1000 Rental LED Display Screen

The KSS 500×1000 Rental LED Display Screen is a premium, multi-purpose stage rental screen ideal for various indoor and outdoor applications. Featuring a fast-assembly quick-lock mechanism and bendable installation options, this display screen is designed for efficient and hassle-free setup. Constructed with die-cast aluminum and utilizing stainless steel screws and quick locks, it boasts enhanced strength and durability. Overall, the KSS 500×1000 offers an exceptional rental LED Display solution for diverse events and settings

Outdoor KSS 500×1000 Rental LED Display Screen Series Parameter

Pixel Pitch (mm)P2.6P2.97P3.91P4.81
ModelKSS1000C6-OP2.6KSS1000C6-OP2.97KSS1000C6-OP3.91KSS1000C6-OP4.81
Pixel ConfigurationSMD1415SMD1415SMD1921SMD1921
Density (Pixels/㎡)147,928112,89665,53643,264
Module Resolution (Pixel)96×9684×8464×6452×52
Module Size (mm)250×250250×250250×250250×250
Driving Mode (Duty)1/211/211/161/13
Cabinet Size (mm)500×1000500×1000500×1000500×1000
Cabinet Weight (KG)12.612.612.612.6
Brightness (CD/㎡)4500450048004200
Viewing Angle (°)140140140140
Gray Grade (Bits)14141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)720720720560
Avg. Power Consumption (W/㎡)240240240190
Frame Frequency (Hz)≥60≥60≥60≥60
Refresh Frequency (Hz)3,8403,8401,920/3,8401,920/3,840
Working Temperature (ºC)-20～+60-20～+60-20～+60-20～+60
Lifetime (Hours)100,000100,000100,000100,000
Protection GradeIP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)

Indoor KSS 500×1000 Rental LED Display Screen Series Parameter

Pixel Pitch (mm)P1.95(GOB)P2.6P2.97P3.91P4.81
ModelKSS1000C6-iP1.95KSS1000C6-iP2.6KSS1000C6-iP2.97KSS1000C6-iP3.91KSS1000C6-iP4.81
Pixel ConfigurationSMD1515SMD1515SMD2020SMD2020SMD2020
Density (Pixels/㎡)262,144147,928112,89665,53643,264
Module Resolution (Pixel)128×12896×9684×8464×6452×52
Module Size (mm)250×250250×250250×250250×250250×250
Driving Mode (Duty)1/321/321/281/161/13
Cabinet Size (mm)500×1000500×1000500×1000500×1000500×1000
Cabinet Weight (KG)1111111111
Brightness (CD/㎡)800750800800700
Viewing Angle (°)140140140140140
Gray Grade (Bits)1414141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)480480480576560
Avg. Power Consumption (W/㎡)160160160192190
Frame Frequency (Hz)≥60≥60≥60≥60≥60
Refresh Frequency (Hz)3,8403,8403,8401,920/3,8401,920/3,840
Working Temperature (ºC)-20～+60-20～+60-20～+60-20～+60-20～+60
Lifetime (Hours)100,000100,000100,000100,000100,000
Protection GradeIP31IP31IP31IP31IP31
