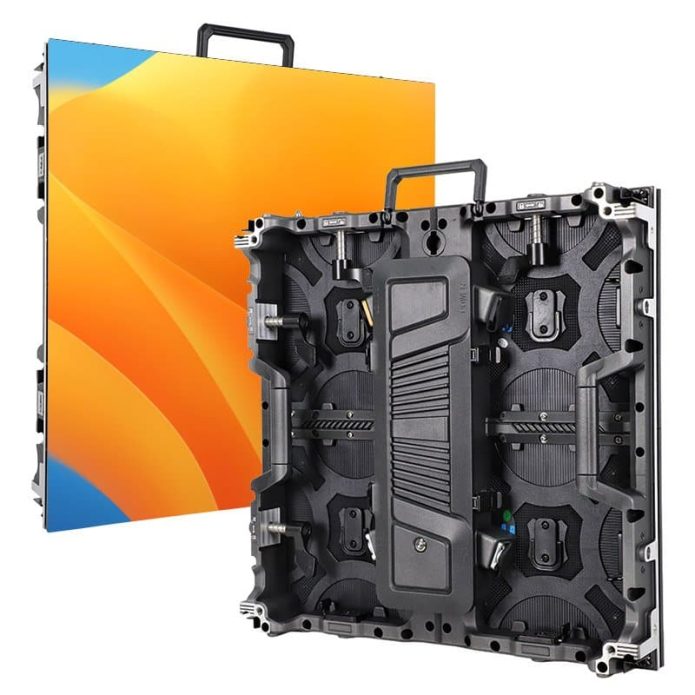

KSS500c6 500×500 Rental LED Display Screen

KSS 500×500 Rental LED Display Screen is a high-quality and versatile stage rental screen. It is suitable for multiple application scenarios such as indoor and outdoor. KSS 500×500 Rental LED Display Screen adopts quick-lock design and supports bending installation, making it easy and fast to install. The cabinet is made of die-cast aluminum, and all screws and quick locks are made of stainless steel, making it stronger and more durable. It is an ideal rental cabinet.

Get A Quote
Contact Us

Outdoor KSS 500×500 Rental LED Display Screen Series Parameter

Pixel Pitch (mm) P2.6 P2.97 P3.91 P4.81
Model KSS500C6-OP2.6 KSS500C6-OP2.97 KSS500C6-OP3.91 KSS500C6-OP4.81
Pixel Configuration SMD1415 SMD1415 SMD1921 SMD1921
Density (Pixels/㎡) 147,928 112,896 65,536 43,264
Module Resolution (Pixel) 96×96 84×84 64×64 52×52
Module Size (mm) 250×250 250×250 250×250 250×250
Driving Mode (Duty) 1/16 1/21 1/16 1/13
Cabinet Size (mm) 500×500 500×500 500×500 500×500
Cabinet Weight (KG) 7.3 7.3 7.3 7.3
Brightness (CD/㎡) 4500 4500 4800 4200
Viewing Angle (°) 140 140 140 140
Gray Grade (Bits) 14 14 14 14
Operation Power AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz
Max. Power Consumption (W/㎡) 720 720 720 560
Avg. Power Consumption (W/㎡) 240 240 240 190
Frame Frequency (Hz) ≥60 ≥60 ≥60 ≥60
Refresh Frequency (Hz) 3,840 3,840 1,920/3,840 1,920/3,840
Working Temperature (ºC) -20～+60 -20～+60 -20～+60 -20～+60
Lifetime (Hours) 100,000 100,000 100,000 100,000
Protection Grade IP65(front), IP54(rear) IP65(front), IP54(rear) IP65(front), IP54(rear) IP65(front), IP54(rear)

Indoor KSS 500×500 Rental LED Display Screen Series Parameter

Pixel Pitch (mm) P1.95(GOB) P2.6 P2.97 P3.91 P4.81
Model KSS500C6-iP1.95  KSS500C6-iP2.6  KSS500C6-iP2.97 KSS500C6-iP3.91 KSS500C6-iP4.81
Pixel Configuration SMD1515 SMD1515 SMD2020 SMD2020 SMD2020
Density (Pixels/㎡) 262,144 147,928 112,896 65,536 43,264
Module Resolution (Pixel) 128×128 96×96 84×84 64×64 52×52
Module Size (mm) 250×250 250×250 250×250 250×250 250×250
Driving Mode (Duty) 1/32 1/32 1/28 1/16 1/13
Cabinet Size (mm) 500×500 500×500 500×500 500×500 500×500
Cabinet Weight (KG) 6.5 6.5 6.5 6.5 6.5
Brightness (CD/㎡) 800 750 800 800 700
Viewing Angle (°) 140 140 140 140 140
Gray Grade (Bits) 14 14 14 14 14
Operation Power AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz
Max. Power Consumption (W/㎡) 480 480 480 576 560
Avg. Power Consumption (W/㎡) 160 160 160 192 190
Frame Frequency (Hz) ≥60 ≥60 ≥60 ≥60 ≥60
Refresh Frequency (Hz) 3,840 3,840 3,840 1,920/3,840 1,920/3,840
Working Temperature (ºC) -20～+60 -20～+60 -20～+60 -20～+60 -20～+60
Lifetime (Hours) 100,000 100,000 100,000 100,000 100,000
Protection Grade IP31 IP31 IP31 IP31 IP31
