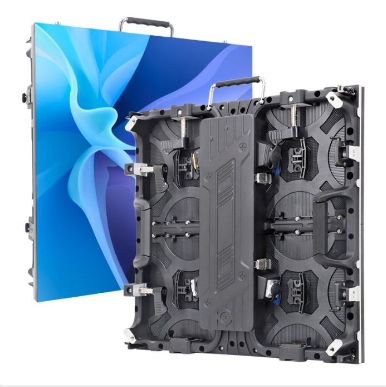

Outdoor 500x500mm KSS500c3 Rental LED Display Series Parameter
Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P4.81 |
---|---|---|---|---|
Model | KSS500c3-OP2.6 | KSS500c3-OP2.97 | KSS500c3-OP3.91 | KSS500c3-OP4.81 |
Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 43,264 |
Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 | 52×52 |
Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
Driving Mode (Duty) | 1/16 | 1/21 | 1/16 | 1/13 |
Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 |
Cabinet Weight (KG) | 7.3 | 7.3 | 7.3 | 7.3 |
Brightness (CD/㎡) | 4500 | 4500 | 4800 | 4200 |
Viewing Angle (°) | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 560 |
Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 190 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | 3,840 | 3,840 | 1,920/3,840 | 1,920/3,840 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
Indoor 500x500mm KSS500c3 Rental LED Display Series Parameter
Pixel Pitch (mm) | P1.95(GOB) | P2.6 | P2.97 | P3.91 | P4.81 |
---|---|---|---|---|---|
Model | KSS500c3-iP1.95 | KSS500c3-iP2.6 | KSS500c3-iP2.97 | KSS500c3-iP3.91 | KSS500c3-iP4.81 |
Pixel Configuration | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
Density (Pixels/㎡) | 262,144 | 147,928 | 112,896 | 65,536 | 43,264 |
Module Resolution (Pixel) | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
Driving Mode (Duty) | 1/32 | 1/32 | 1/28 | 1/16 | 1/13 |
Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 |
Cabinet Weight (KG) | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
Brightness (CD/㎡) | 800 | 750 | 800 | 800 | 700 |
Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 576 | 560 |
Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 192 | 190 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 | 1,920/3,840 | 1,920/3,840 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
