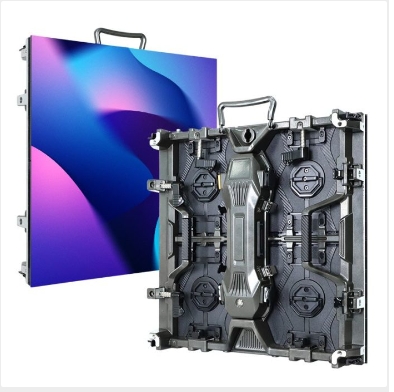

Outdoor 500x500mm KSS500h6 Rental LED Display Series Parameter
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 |
|---|---|---|---|
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 |
| Brightness (CD/㎡) | 4500 | 4500 | 4800 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 7.5 | 7.5 | 7.5 |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 |
| Driving Mode (Duty) | 1/16 | 1/21 | 1/16 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 |
| Model | KSS500h6-OP2.6 | KSS500h6-OP2.97 | KSS500h6-OP3.91 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 |
| Viewing Angle (°) | 140 | 140 | 140 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
Indoor 500x500mm KSS500h6 Rental LED Display Series Parameter
| Pixel Pitch (mm) | P1.95(GOB) | P2.6 | P2.97 | P3.91 |
|---|---|---|---|---|
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 192 |
| Brightness (CD/㎡) | 800 | 750 | 800 | 700 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 7 | 7 | 7 | 7 |
| Density (Pixels/㎡) | 262,144 | 147,928 | 112,896 | 65,536 |
| Driving Mode (Duty) | 1/32 | 1/32 | 1/28 | 1/16 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 576 |
| Model | KSS500h6-iP1.95 | KSS500h6-iP2.6 | KSS500h6-iP2.97 | KSS500h6-iP3.91 |
| Module Resolution (Pixel) | 128×128 | 96×96 | 84×84 | 64×64 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Pixel Configuration | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 | 3,840 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
