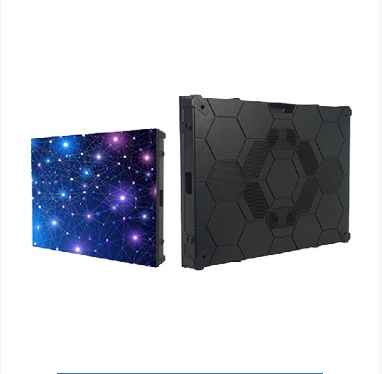

What is the KSS640 Series LED Display?
The KSS640 Series LED Display is a high-quality LED video wall specifically designed for indoor fixed installation applications. It offers exceptional image quality with fine pixels and a user-friendly, front service design for LED power supply, cards, and modules. With its ultra-lightweight magnesium alloy cabinet measuring 640x480mm in a 4:3 ratio, the KSS640 Series LED Display provides excellent flatness and easy installation for various indoor settings.
Features of KSS640 Series LED Display
- Optimal Size: The KSS640 Series LED Display features a 640x480mm cabinet size and a 320x160mm module size, making it an ideal choice for indoor installations with space constraints.
- SMD 3-in-1 LED Encapsulation Technology: This advanced technology enables the display to achieve superior image quality, vibrant colors, and excellent contrast.
- Frontal Service Design: The easily accessible front service design simplifies the installation process and allows for efficient maintenance by providing direct access to the LED power supply, cards, and modules.
- Safety and Compliance: The KSS640 Series LED Display is CE, RoHS, and FCC approved, ensuring its safety, reliability, and compliance with international standards.
- Warranty and Support: The product comes with a 3-year warranty and 5% spare parts for added peace of mind and long-term reliability.
Applications of KSS640 Series LED Display
The KSS640 Series LED Display is suitable for a wide range of indoor fixed installation applications, including:
- Retail stores and shopping centers: Attract customers and highlight promotions with vibrant and eye-catching displays.
- Corporate offices: Enhance communication and collaboration with high-definition digital signage in conference rooms, lobbies, and other common areas.
- Hotels and restaurants: Create a welcoming atmosphere and provide useful information for guests and visitors.
- Public spaces and transportation hubs: Display real-time schedules, announcements, and advertisements in airports, train stations, and bus terminals.
- Sports arenas and theaters: Offer an immersive experience with live event broadcasting and engaging content.
Price of KSS640 Series LED Display
The cost of the KSS640 Series LED Display varies depending on factors such as the size of the display, the number of modules, and customization requirements. Prices may also be influenced by warranty terms, support, and any additional services provided by the manufacturer. For accurate pricing details, it is recommended to contact a sales representative or the manufacturer directly to obtain an appropriate quote based on your specific needs and preferences.
Specification
| Technical Parameters | Pixel Pitch(mm) | P1.25mm | P1.53mm | P1.66mm | P1.86mm | P2mm | P2.5mm |
| LED | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | |
| Module Resolution(dots) | 256*128 | 208*104 | 192*96 | 172*86 | 160*80 | 128*64 | |
| Module Size(mm) | 320*160 | ||||||
| Cabinet Resolution(dots) | 512*384 | 416*312 | 384*288 | 344*258 | 340*240 | 256*192 | |
| Cabinet Size(mm) | 640mm*480mm*(WxH) | ||||||
| Pixel Density(dots/㎡) | 640000 | 422500 | 360000 | 288906 | 250000 | 160000 | |
| Serviceability | Full front service | ||||||
| Protection Level(Front/Rear) | IP40 | ||||||
| Weight | 7.5kg | ||||||
| Optical Parameters | Grey Level (bit) | 12~14 | |||||
| Brightness(cd/㎡) | 400-450 | ||||||
| Contrast | 6000：1 | ||||||
| Color Gamut | ≥90% NTSC | ||||||
| Refresh Rate (Hz) | 3840 | ||||||
| Hor. viewing angle | 160° | ||||||
| Vert. viewing angle | 140° | ||||||
| Brightness Uniformity | ≥95% | ||||||
